    2m Diameter Shaftless Trommel Screen Machine For Municipal Solid Waste

    Ask Lasest Price
    Brand Name : PK
    Model Number : WGTS
    Certification : CE, ISO9001:2015, ISO14001:2015
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 500 SETS/YEAR
    Delivery Time : About 35 days
    • Product Details
    • Company Profile

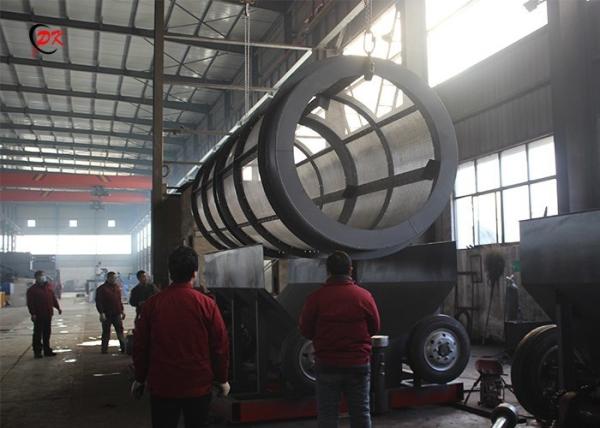

    2m Diameter Shaftless Trommel Screen Machine For Municipal Solid Waste

    2m Diameter Shaftless Trommel Screen Machine For Municipal Solid Waste


    Introduction
    Trommel screen has wide range of sizes and capacities,it is a mechanical screening machine used to separate materials.It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end,motor,reduction unit,screen frame and sealing cover.When materials flow towards along the inclined rotating drum,materials jump and roll,he undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.


    Trommel screen can be manufactured to fit your specific needs. No matter adopt belt conveyor, hopper or other manner to feed the materails, it can run well without other special device.



    Advantages and Features
    1. Designed to fit your operation- Trommel screen can be customized to meet different capacity and working site
    2. Free from pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well
    3. Variable application range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc.
    4. Superior design-Simple structure,easy maintenance,steady operation,low energy consumption
    5. Less blockage-Automatic cleaning brush on the top of trommel screen to avoid the blockage
    6. Screen long life span-Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency.

    Technical Parameters

    Model

    Length

    (m)

    Screen

    Deck/Layer

    No.

    Aperture

    Size

    (mm)

    Power

    (kW)

    Inclined

    Angle

    (degree)

    Max.

    Material

    Size

    (mm)

    Rotating

    Speed

    (r/min)

    WGTS9002-51-35-403-5.50-76015-18
    WGTS10002-61-45-504-7.50-78015-18
    WGTS12003-81-45-605.5-110-710015-18
    WGTS15003-101-55-607.5-22015015-18
    WGTS18003-101-55-607.5-30015015-18
    WGTS20004-101-55-757.5-37018015-18

    Note: the parameter above is just for reference,it can be customized by different requirment.



    Selection Conditions

    ♦ Material to be processed:


    ♦ Screen deck/segment number:


    ♦ Bulk density:

    t/m3

    ♦ Mesh size of every screen deck/segment:

    mm

    ♦ Material Temperature:

    ºC

    ♦ Upstream equipment (what kind of equipment is used to feed the material):

    ♦ Water Content:

    %

    ♦ Downstream equipment (what kind of equipment is used to discharge the material):

    ♦ Material is corrosive or not:

    (Yes or No)

    ♦ Drive: (Domestic or International brand or designated brand?)

    ♦ Material is sticky or not:

    (Yes or No)

    ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

    ♦ Granule size of material:

    mm

    ♦ Working environment:

    (indoor or outdoor)

    ♦ Max. granule size:

    mm

    ♦ Working environment temperature:

    °C

    ♦ Particle distribution percentage:


    ♦ Working power supply:

    3 Phase V Hz

    ♦ Handling capacity:

    t/h

    ♦ Quantity:

    sets
