    Wear Resistant Sidewall Skirt Rubber Mining bucket Conveyor Belt

    Ask Lasest Price
    Brand Name : PK
    Model Number : DJB
    Certification : CE Certificate,ISO9001:2008, BV, SGS,Business-license,Certificate of environment management system certification
    Price : Negotiable
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram
    Supply Ability : 1000SETS/YEAR
    Delivery Time : AOUT 30 DAYS
    • Product Details
    • Company Profile

    Wear Resistant Sidewall Skirt Rubber Mining bucket Conveyor Belt

    Wear Resistant Sidewall Skirt Rubber Mining bucket Conveyor Belt


    Introduction

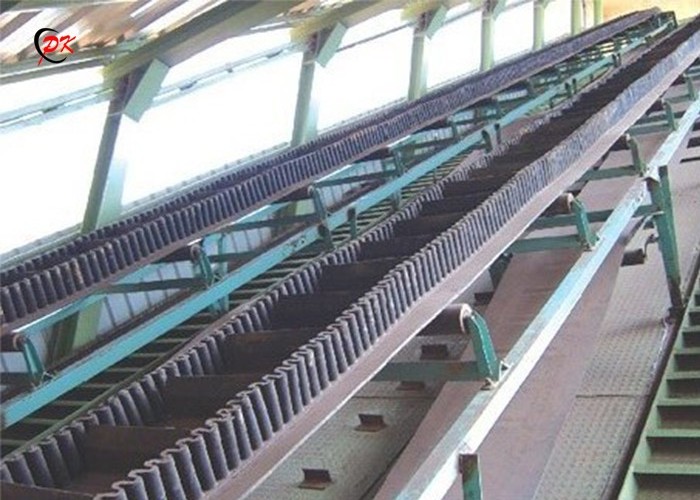

    This machine is a continuously conveying equipment for general purpose materials in bulk and adopted belt with waviness sides and diaphragm plate. It is specially using for big inclined angle conveying.It is widely used for coal, chemical industry, building materials, metallurgy, electric power, light industry grain, port, shipping etc. Specific gravity of bulk materials is 0.5-2.5 t/m³ It can be conveyed in the working environment where the temperature is during -15 degree to 140 degree.


    Advantages and Features

    1. Extremely high stability is provided in the traverse direction, good longitudinal flexibility
    2. Low maintenance requirements
    3. Hot vulcanization provides 5 times greater adhesion between the belt and sidewall, eliminating the need for bolting the sidewall to the base belt.
    4. Can be sealed and environmental friendly.



    Technical Parameter

    Belt Width

    (mm)

    Height of Sidewall

    (mm)

    Belt Speed

    (m/s)

    Angle of

    Inclination

    (°)

    Capacity

    (m³/h)

    500800.8-2.030-9084
    100112
    12098
    6501000.8-2.0156
    120140
    160186
    8001200.8-2.5186
    160318
    200360
    10001601.0-2.5428
    200483
    240683
    12001601.0-3.15535
    200765
    2401077
    3001358
    14002001.0-3.15920
    2401298
    3001657
    4002381
    16002001.25-3.151074
    2401515
    3001953
    4002807
    18002401.25-4.02200
    3002724
    4004106
    5005036

    Capacity is under 30° angle and maximum belt speed.


    Note: All the parameters are for reference only, we can design and manufacture as per your requirements.


    Selection Conditions


    ♦ Material to be processed:


    ♦ Top horizontal section length:

    m

    ♦ Bulk density:

    t/m3

    ♦ Conveyor angle:

    ___°

    ♦ Water content:

    %

    ♦ Lifting height:

    ___m

    ♦ Material temperature:

    °C

    ♦ Upstream equipment (what kind of equipment is used to feed the material):

    ♦ Material is corrosive or not:

    (Yes or No)

    ♦ Downstream equipment (what kind of equipment is used to feed the material):

    ♦ Material is sticky or not:

    (Yes or No)

    ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

    ♦ Granule size of material:

    mm

    ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

    ♦ Max. Granule size:

    mm

    ♦ Working environment:

    (indoor or outdoor)

    ♦ Handling capacity:

    t/h

    ♦ Working environment temperature:

    °C

    ♦ Conveying length:

    m

    ♦ Working power supply:

    3 Phase V Hz

    ♦ Bottom horizontal section length: m

    ♦ Quantity:

    sets
