    Material Handling Conveying Equipment Coal Belt Conveyor Machine

    Ask Lasest Price
    Brand Name : PK
    Model Number : DTIIA
    Certification : CE Certificate,ISO14001:2015, BV, SGS,Business-license,Certificate of environment management system certification
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 600SETS/YEAR
    Delivery Time : ABOUT 35 DAYS
    • Product Details
    • Company Profile

    Material Handling Conveying Equipment Coal Belt Conveyor Machine

    Material Handling Conveying Equipment Coal Belt Conveyor Machine


    Introduction

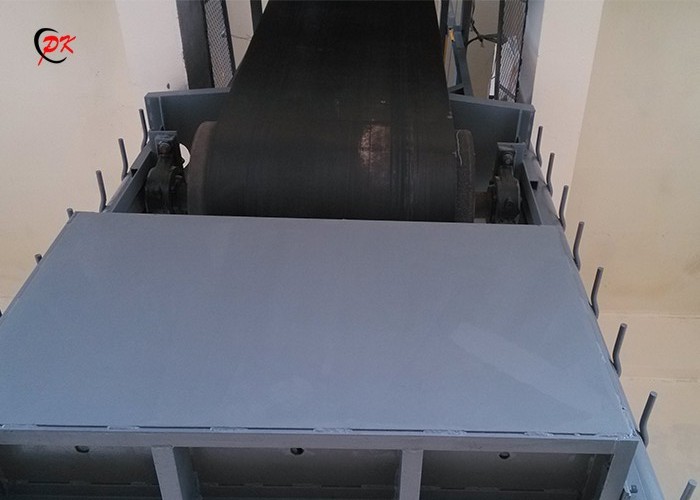

    The fixed belt conveyor is a short-distance transportation machine for continuously transporting materials. It is common transportation equipment used in coal mines to connect downhole operations and on-ground production systems. In the course of use, it has many advantages, such as strong transportation capacity, low power consumption, low work resistance, long service life, etc.


    Advantages and Features

    1. There is no relative movement between material and belt, therefore, no damage for material.
    2. Safety protection device can effectively protect the belt conveyor.
    3. The driving device can be used according to different purposes of use and site conditions.
    4. Belt conveyors can be loaded and unloaded at any point according to the production process.
    5. Can be customized, suitable for conveying various materials in the Long distance.
    6. Conveyor length can be customized according to your need.
    7. Belt conveyor cleaner can be installed to clean the conveyor belt.
    8. Conveyor rollers are manufactured by our roller production line to ensure smooth conveyor system.


    Technical datas:

    Roller formRunning speed(m/s)Belt width (mm)
    500650800100012001400
    capacity(m3/h)
    Trough roller0.878130--------
    1.097164278435655891
    1.251222063485448211115
    1.615626444569610481427
    2.019132354685312841748
    2.5232391664103315562118
    3.15----824123318582528
    4.0--------22022996
    Falt roller0.84167118------
    1.05288147230345469
    1.2566110184288432588
    1.684142236368558753
    2.0103174289451677922
    2.51252113505468211117


    Selection Conditions


    ♦ Material to be processed:


    ♦ Installation angle:

    ___°(if the installation is inclined)

    ♦ Bulk density:

    t/m3

    ♦ Lifting height:

    ___m (if there is slope angle)

    ♦ Water content:

    %

    ♦ Upstream equipment (what kind of equipment is used to feed the material):

    ♦ Material temperature:

    °C

    ♦ Downstream equipment (what kind of equipment is used to discharge the material):

    ♦ Material is corrosive or not:

    (Yes or No)

    ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

    ♦ Material is sticky or not:

    (Yes or No)

    ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

    ♦ Granule size of material:

    mm

    ♦ Working environment:

    (indoor or outdoor)

    ♦ Max. Granule size:

    mm

    ♦ Working environment temperature:

    °C

    ♦ Handling capacity:

    t/h

    ♦ Working power supply:

    3 Phase V Hz

    ♦ Conveying length:

    m

    ♦ Quantity:

    sets

    ♦ Installation of the conveyor is inclined or not: ___ (Yes or No)
