    Drag Conveyor Chemicals Conveyor Inclined Redler Lime Chain Type

    Ask Lasest Price
    Brand Name : PK
    Model Number : MC160/200/250/320/400mm
    Certification : CE Certificate,ISO9001:2008, BV, SGS,Business-license,Certificate of environment management system certification
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 600SETS/YEAR
    Delivery Time : ABOUT 30 DAYS
    • Product Details
    • Company Profile

    Drag Conveyor Chemicals Conveyor Inclined Redler Lime Chain Type

    Drag Conveyor Chemicals Conveyor Inclined Redler Lime Chain Type


    Introduction

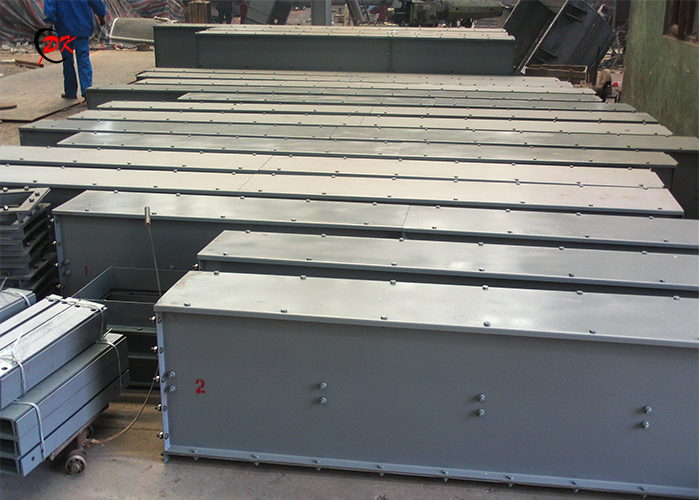

    Incline scraper chain conveyor is bulk material conveying equipment, which consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains. By means of moving chains, it can continuously transport the materials in closed rectangular casing vertically or at a large inclined angle. The MC buried scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.



    Advantages and Features

    • Totally enclosed structure without pollution to the environment.
    • Light weight, small volume, space saving.
    • Convenient installation and maintenance.
    • Vertical or large inclined transportation, angles range from 30° to 90°.
    • Multiple material feeding point and discharging point.
    • Conveying distance is up to 40m.
    • Material temperature lower than 120°C.
    • Gear motor brand can be domestic or imported: Tailong, , Siemens etc.

    Technical Parameter


    MC type Scraper Conveyor
    TypeMC16MC20MC25MC32MC40
    Trough Width (mm)160200250320400
    Bulk Density of Material (t/m³)0.2~1.8
    Conveying Length (m)5~30

    Conveying

    Capacity

    Speed (m/s)0.160.160.160.160.16
    Capacity (m³/h)1115233655
    Speed (m/s)0.20.20.20.20.2
    Capacity (m³/h)1419294670
    Speed (m/s)0.250.250.250.250.25
    Capacity (m³/h)1723365890
    Speed (m/s)0.320.320.320.320.32
    Capacity (m³/h)22304674110

    Note: All the parameters are for reference only, we can design and manufacture as per your requirements.


    Selection Conditions


    ♦ Material to be processed:

    _

    ♦ Installation angle:

    ___° (if the installation is inclined)

    ♦ Bulk density:

    t/m3

    ♦ lifting height:

    ___m (if there is slope angle)

    ♦ Water content:

    %

    ♦ Upstream equipment (what kind of equipment is used to feed the material):

    ♦ Material temperature:

    °C

    ♦ Downstream equipment (what kind of equipment is used to discharge the material):

    ♦ Material is corrosive or not:

    (Yes or No)

    ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

    ♦ Material is sticky or not:

    (Yes or No)

    ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

    ♦ Granule size of material:

    mm

    ♦ Working environment:

    (indoor or outdoor)

    ♦ Max. Granule size:

    mm

    ♦ Working environment temperature:

    °C

    ♦ Handling capacity:

    t/h

    ♦ Working power supply:

    3 Phase V Hz

    ♦ Conveying length (distance between inlet and outlet): m

    ♦ Quantity:

    sets

    ♦ Installation of the conveyor is inclined or not: ___ (Yes or No)
