    Grain Silo Distribution Silo Chain Conveyor /Warehouse Chain Conveyor

    Ask Lasest Price
    Brand Name : PK
    Model Number : MC160/200/250/320/400mm
    Certification : CE Certificate,ISO9001:2008, BV, SGS,Business-license,Certificate of environment management system certification
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 600SETS/YEAR
    Delivery Time : ABOUT 30 DAYS
    • Product Details
    • Company Profile

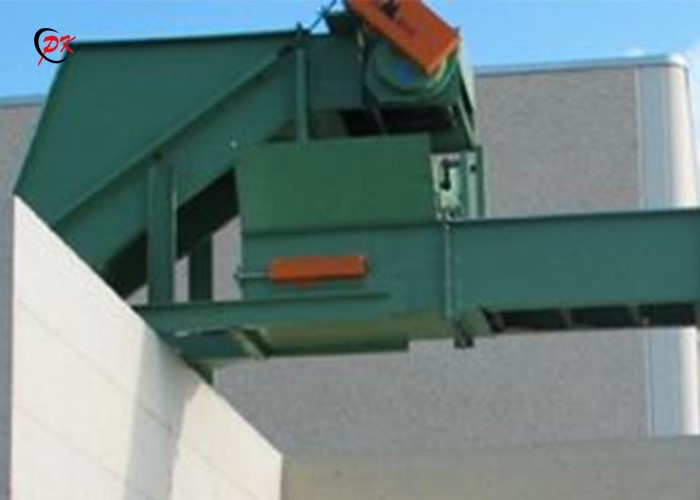

    Grain Silo Distribution Silo Chain Conveyor /Warehouse Chain Conveyor

    Grain Silo Distribution Silo Chain Conveyor Warehouse Chain Conveyor


    Introduction

    Grain scraper chain conveyor is a light type of buried scraper conveyor which to transport grain into several silos. Compared to the ordinary type, the casing thickness of QMS type is smaller, thus loses the whole weight and saves money. Grain scraper chain conveyor can be widely used to convey grain such as soybean, wheat, rice, flour etc.



    Advantages and Features


    1.Completely enclosed for clean plant operation, environmental friendly.
    2.Large capacities for conveying in a compact space.
    3.Light weight compared with other kind of buried scraper conveyor.
    4.Can reach multipoint charging and discharging.
    5.Variety of side & bottom abrasive resistant steel liners.
    6.Flexible arrangement, singly work or cooperate with other equipment can be achieved.
    7.With screw take-up device, can take-up itself automatically, to avoid chain take off.
    8.Length can be custom-made according to your requirement.


    Technical Parameters

    Scraper Chain Conveyor
    Model

    Effective

    Working

    Area

    (WXH)

    Chain

    Capacity

    (t/h)

    Max.

    Conveying

    Length (m)

    Pitch

    Chain

    Type

    Scraper

    Type

    Speed

    (m/s)

    ρ=0.5

    (t/m3)

    ρ=0.75

    (t/m3)

    ρ=0.5

    (t/m3)

    ρ=0.75

    (t/m3)

    QMS20200 X 200100

    Roller

    Chain

    T0.211.517.26040
    0.2514.421.6
    0.3218.427.6
    0.42334.5
    0.528.843.2
    0.6334s
    0.843.264.8
    QMS25250 X 250125

    Roller

    Chain

    T0.216.925.36040
    0.2521.131.6
    0.322740.5
    0.433.750.6
    0.542.163.2
    0.6353.179.7
    0.867.5101.3
    QMS32320 X 320160

    Roller

    Chain

    T0.2534.551.86050
    0.3244.266.3
    0.455.382.9
    0.569.1103.6
    0.6387.1130.6
    0.8110.5165.8


    Note: All the parameters are for reference only, we can design and manufacture as per your requirements.


    Selection Conditions


    ♦ Material to be processed:

    _

    ♦ Installation angle:

    ___° (if the installation is inclined)

    ♦ Bulk density:

    t/m3

    ♦ lifting height:

    ___m (if there is slope angle)

    ♦ Water content:

    %

    ♦ Upstream equipment (what kind of equipment is used to feed the material):

    ♦ Material temperature:

    °C

    ♦ Downstream equipment (what kind of equipment is used to discharge the material):

    ♦ Material is corrosive or not:

    (Yes or No)

    ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

    ♦ Material is sticky or not:

    (Yes or No)

    ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

    ♦ Granule size of material:

    mm

    ♦ Working environment:

    (indoor or outdoor)

    ♦ Max. Granule size:

    mm

    ♦ Working environment temperature:

    °C

    ♦ Handling capacity:

    t/h

    ♦ Working power supply:

    3 Phase V Hz

    ♦ Conveying length (distance between inlet and outlet): m

    ♦ Quantity:

    sets

    ♦ Installation of the conveyor is inclined or not: ___ (Yes or No)
