    Firewood Scraper Chain Conveyor , Heavy Duty Fuel Feeder Forged Chain Conveyor

    Ask Lasest Price
    Brand Name : PK
    Model Number : MC160/200/250/320/400mm
    Certification : CE Certificate,ISO9001:2008, BV, SGS,Business-license,Certificate of environment management system certification
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 600SETS/YEAR
    Delivery Time : ABOUT 30 DAYS
    • Product Details
    • Company Profile

    Firewood Scraper Chain Conveyor , Heavy Duty Fuel Feeder Forged Chain Conveyor

    Firewood Scraper Chain Conveyor , Heavy Duty Fuel Feeder Forged Chain Conveyor


    Introduction

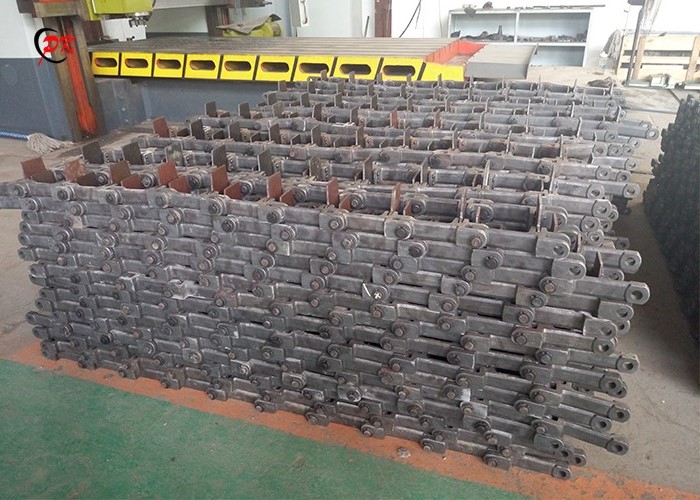

    Heavy duty fuel feeder forged chain conveyor firewood chain conveyor is a new product for horizontal (or inclined 15%) conveying powdery, granular and small block materials.This product design is reasonable, the structure is novel, the service life is long, its service performance obviously surpasses the spiral conveyor, the buried scraper conveyor and other conveyor equipment, is one kind of ideal new conveyor equipment.The products are widely used in building materials, chemical industry, mining, metallurgy, electric power, grain and oil processing, machinery, transportation, port and transportation industries

    FU type scraper conveyor is a conveying equipment which is traction components on the roller chain plate and continuous. This type of device with compact structure, good sealing, rational layout, application convenient maintenance, etc.
    It is mainly used for grinding powder, particle, small lump with strong abrasive in horizontal or inclination, also widely used in chemical industry, metallurgy, mining, building materials, electric power, light industry, traffic, road construction, food processing industry, port, etc.


    Advantages and Features

    • Totally enclosed structure without pollution to the environment.
    • Light weight, small volume, space saving.
    • Convenient installation and maintenance.
    • Vertical or large inclined transportation, angles range from 30° to 90°.
    • Multiple material feeding point and discharging point.
    • Conveying distance is up to 40m.
    • Material temperature lower than 120°C.
    • Gear motor brand can be domestic or imported: Tailong, , Siemens etc.


    Technical Parameters

    Scraper Chain Conveyor
    Model

    Effective

    Working

    Area

    (WXH)

    Chain

    Capacity

    (t/h)

    Max.

    Conveying

    Length (m)

    Pitch

    Chain

    Type

    Scraper

    Type

    Speed

    (m/s)

    ρ=0.5

    (t/m3)

    ρ=0.75

    (t/m3)

    ρ=0.5

    (t/m3)

    ρ=0.75

    (t/m3)

    QMS20200 X 200100

    Roller

    Chain

    T0.211.517.26040
    0.2514.421.6
    0.3218.427.6
    0.42334.5
    0.528.843.2
    0.6334s
    0.843.264.8
    QMS25250 X 250125

    Roller

    Chain

    T0.216.925.36040
    0.2521.131.6
    0.322740.5
    0.433.750.6
    0.542.163.2
    0.6353.179.7
    0.867.5101.3
    QMS32320 X 320160

    Roller

    Chain

    T0.2534.551.86050
    0.3244.266.3
    0.455.382.9
    0.569.1103.6
    0.6387.1130.6
    0.8110.5165.8


    Note: All the parameters are for reference only, we can design and manufacture as per your requirements.

    Selection Conditions


    ♦ Material to be processed:
    _

    ♦ Installation angle:
    ___° (if the installation is inclined)

    ♦ Bulk density:
    t/m3

    ♦ lifting height:
    ___m (if there is slope angle)

    ♦ Water content:
    %

    ♦ Upstream equipment (what kind of equipment is used to feed the material):

    ♦ Material temperature:
    °C

    ♦ Downstream equipment (what kind of equipment is used to discharge the material):

    ♦ Material is corrosive or not:
    (Yes or No)

    ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

    ♦ Material is sticky or not:
    (Yes or No)

    ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

    ♦ Granule size of material:
    mm

    ♦ Working environment:
    (indoor or outdoor)

    ♦ Max. Granule size:
    mm

    ♦ Working environment temperature:
    °C

    ♦ Handling capacity:
    t/h

    ♦ Working power supply:
    3 Phase V Hz

    ♦ Conveying length (distance between inlet and outlet): m

    ♦ Quantity:
    sets

    ♦ Installation of the conveyor is inclined or not: ___ (Yes or No)
