    Inclined sidewall large angle corrugated belt conveyor

    Ask Lasest Price
    Brand Name : PK
    Certification : CE ISO BV
    Supply Ability : 160 Set/Sets per Month
    Price : $3,100.00 - $15,300.00 / Sets
    • Product Details
    • Company Profile

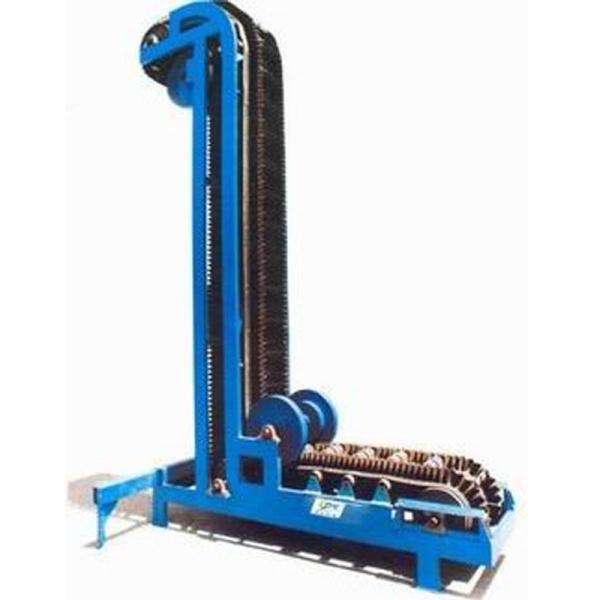

    Inclined sidewall large angle corrugated belt conveyor

    Inclined sidewall large angle corrugated belt conveyor


    Introduction

    This machine is a continuously conveying equipment for loose bulk material such as coal, sand, stone, grain, etc and some powdered material, so its slope of application is very wide, including mine, cement plant, chemical industry, metallurgy and agriculture, electric power, light industry, grain, port, shipping ect, when the mateial need to be conveyor at a big inclined angle, the steeply inclinded belt conveyor also could conveying material vertically.


    Advantages and Features

    1. Reduced energy consumption to save money for you
    2. Able to conveyor material at any angles up to 90 degree to save space for you
    3. Higher conveyance capacity
    4. Extremely high stability is provided in the traverse direction, good longitudinal flexibility
    5. Low maintenance requirements


    Inclined sidewall large angle corrugated belt conveyor


    Technical Parameter

    Belt Width

    (mm)

    Height of Sidewall

    (mm)

    Belt Speed

    (m/s)

    Angle of

    Inclination

    (°)

    Capacity

    (m³/h)

    500800.8-2.030-9084
    100112
    12098
    6501000.8-2.0156
    120140
    160186
    8001200.8-2.5186
    160318
    200360
    10001601.0-2.5428
    200483
    240683
    12001601.0-3.15535
    200765
    2401077
    3001358
    14002001.0-3.15920
    2401298
    3001657
    4002381
    16002001.25-3.151074
    2401515
    3001953
    4002807
    18002401.25-4.02200
    3002724
    4004106
    5005036

    Capacity is under 30° angle and maximum belt speed.


    Note: All the parameters are for reference only, we can design and manufacture as per your requirements.


    Selection Conditions


    ♦ Material to be processed:


    ♦ Top horizontal section length:

    m

    ♦ Bulk density:

    t/m3

    ♦ Conveyor angle:

    ___°

    ♦ Water content:

    %

    ♦ Lifting height:

    ___m

    ♦ Material temperature:

    °C

    ♦ Upstream equipment (what kind of equipment is used to feed the material):

    ♦ Material is corrosive or not:

    (Yes or No)

    ♦ Downstream equipment (what kind of equipment is used to feed the material):

    ♦ Material is sticky or not:

    (Yes or No)

    ♦ Motor and gearbox: (Domestic or International brand or designated brand?)

    ♦ Granule size of material:

    mm

    ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements)

    ♦ Max. Granule size:

    mm

    ♦ Working environment:

    (indoor or outdoor)

    ♦ Handling capacity:

    t/h

    ♦ Working environment temperature:

    °C

    ♦ Conveying length:

    m

    ♦ Working power supply:

    3 Phase V Hz

    ♦ Bottom horizontal section length: m

    ♦ Quantity:

    sets
